Implementing dynamic secure FTP process using SSIS

This blog post explains one of the approaches for automating file export/import between a remote secure FTP site and local folder. This is one of the common scenarios which we come across when data transfer has to be take place between third party organisations. The secure FTP will ensure data security over the network.
The package for the scenario looks like below

The package consists of three simple steps - a data flow task to the actual data export to flat file, script task to create script file for dynamic FTP and an execute process task to do the actual FTP.
The secured FTP upload/download is not supported by default in SSIS using FTP task. Hence we've to make use of third party client for it.
In this example, I'm using a free client known as WinSCP ( for performing the SFTP operation. One good thing about WinSCP is that it has a command line tool associated to it which we can programatically invoke from the Execute Process Task. It takes a script file as an argument which will have the credentials about the site to which we need to do FTP and also the required operation to be done.
The scenario is like at regular intervals we need the delta data (changes since last interval) to be exported to a flat file and then file to be uploaded to secured FTP site. So the filename will keep on changing and will include the timestamp information. So we need to generate the script file at runtime based on filename generated. This is done inside the script task by means of .NET code. The script task will look like below

As you see from the above the task builds script on the fly by passing UserName,Password,URL,Port,Destination Folder and FileName from the variables. The variables except filename can be set via configuration so as to improve flexibility and enable smooth migration of package across various environments.
The filename is generated dynamically by means of an expression to include current timestamp as below

@[User::DirectoryPath]  + "\\data_export_" +  REPLACE((DT_WSTR, 30) (DT_DBDATE) GETDATE(),"-","_")  + "_" + RIGHT("00" +(DT_WSTR, 2) DATEPART( "HH",GETDATE() ) ,2)+ "_" + RIGHT("00" +(DT_WSTR, 2) DATEPART( "MI",GETDATE() ),2) + "_" + RIGHT("00" +(DT_WSTR, 2) DATEPART( "SS",GETDATE() ) ,2)+ ".txt"

The DirectoryPath variable holds the folder path to which files are to be generated.

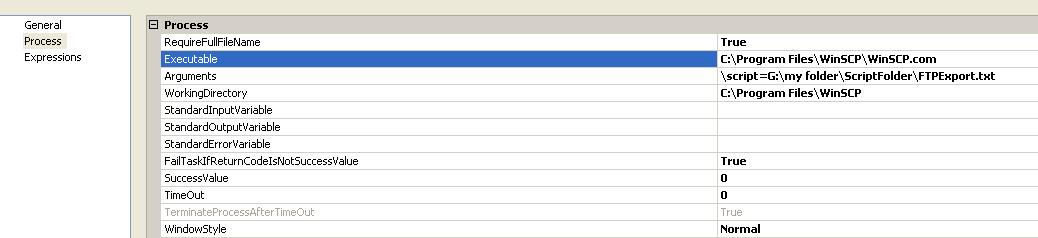

The Execute Process task looks like below

The script file and working folder can be made dynamic by including an expression in task expressions tab using expression builder as follows

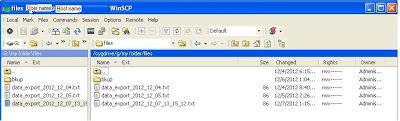

Once this package is executed the file will get generated and exported to secured FTP location dynamically. You can check that by running the WinSCP client UI tool and connecting to the FTP server and you should see the generated file in the preset location.

Similar approach can be followed in doing file download from secured FTP location in which case only change in script would be to use get command rather than put to retrieve the file from the FTP location
That I'm leaving for readers to try it out. Feel free to post back any questions you may have.
EDIT: I've attached a sample package to illustrate SFTP upload using SSIS and WinSCP for a group of files
here as per the request from readers
It creates the script file dynamically based on your file list as per the path specified by the ScriptFilePath variable.
Once downloaded change the variable values to reflect correct values as in your case like SFTP server name,username, password, portnumber, script file path etc and then try executing this.
You should have a SFTP server setup prior to this using openssh or similar tools and should have installed WinSCP client including COM utility which is what the package uses.
